Grad-PU: Arbitrary-Scale Point Cloud Upsampling via Gradient Descent with Learned Distance Functions


1Fudan University     2Google


Our method first interpolates the low-res point cloud according to a given upsampling rate. And then refine the positions of the interpolated points with an iterative optimization process, guided by a trained model estimating the difference between the current point cloud and the high-res target.



Abstract

Most existing point cloud upsampling methods have roughly three steps: feature extraction, feature expansion and 3D coordinate prediction. However, they usually suffer from two critical issues: (1) fixed upsampling rate after one-time training, since the feature expansion unit is customized for each upsampling rate; (2) outliers or shrinkage artifact caused by the difficulty of precisely predicting 3D coordinates or residuals of upsampled points. To adress them, we propose a new framework for accurate point cloud upsampling that supports arbitrary upsampling rates. Our method first interpolates the low-res point cloud according to a given upsampling rate. And then refine the positions of the interpolated points with an iterative optimization process, guided by a trained model estimating the difference between the current point cloud and the high-res target. Extensive quantitative and qualitative results on benchmarks and downstream tasks demonstrate that our method achieves the state-of-the-art accuracy and efficiency.




Network Architecture

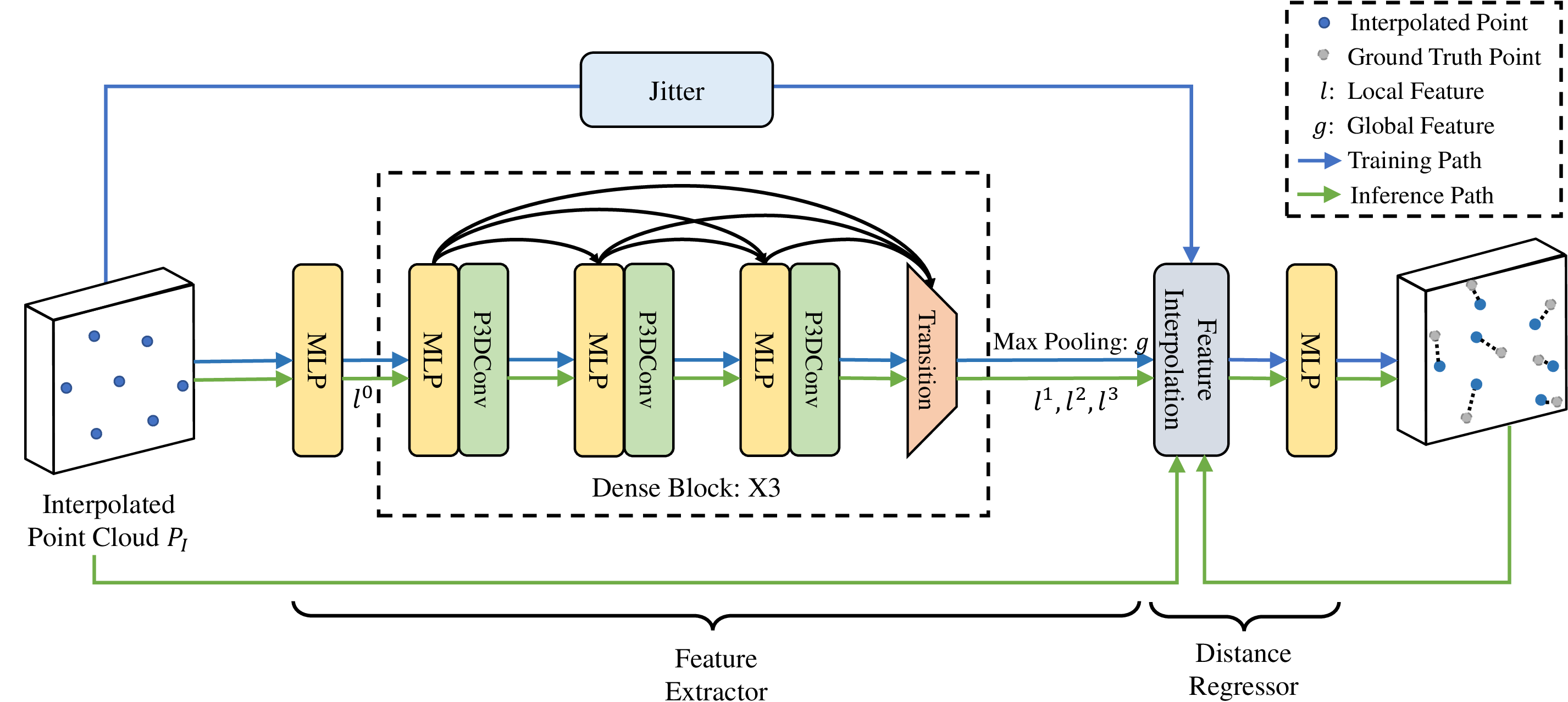

Our P2PNet contains two submodules: a feature extractor and point-to-point distance regressor. For feature extractor, we stack an initial MLP and three dense blocks with intra-block dense connection, where each dense block has three convolution groups to capture local features and one transition down layer to reduce channel. In distance regressor, we estimate the point-to-point distance for each query point conditioned on the extracted local and global features.



Paper and Code

Y. He, D. Tang, Y. Zhang, X. Xue, Y. Fu

Grad-PU: Arbitrary-Scale Point Cloud Upsampling via Gradient Descent with Learned Distance Functions

CVPR 2023

[arXiv]     [GitHub]



Qualitative Results





Qualitative comparisons with SOTA.



Acknowledgements

This work was supported in part by NSFC Project (62176061) and STCSM Project (No.22511105000). Danhang Tang, Yinda Zhang and Xiangyang Xue are the corresponding authours. The website is modified from this template.
